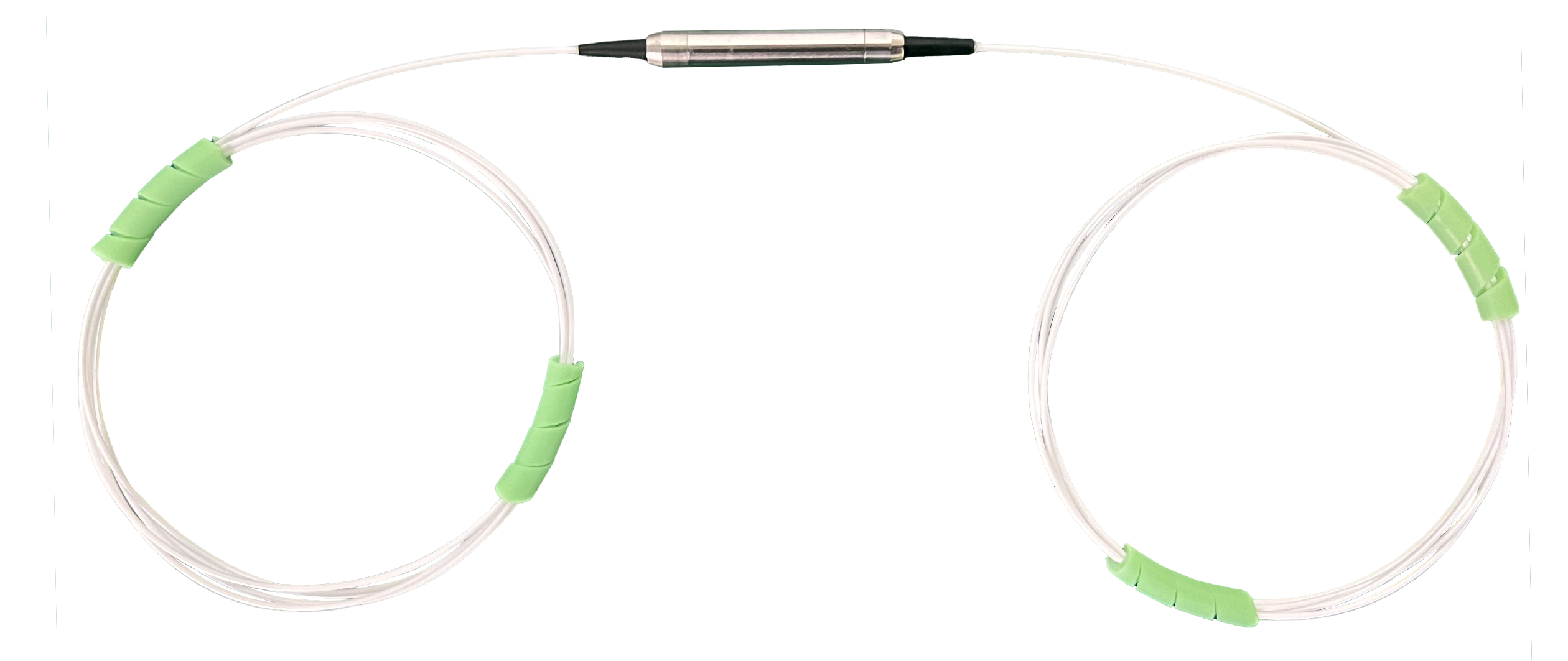

Polarization Maintaining Isolator
Features |
|
Low Insertion Loss High stability and reliability | |
Application | |
EDFA & Fiber Optical Instrument Fiber Sensor Fiber Laser |
Specifications：
Type
Parameter | Single Stage | Dual Stage | |||
P | A | P | A | ||
Operating wavelength (nm) | 1310,1480, 1550 | ||||
Bandwidth (nm) | ±20 | ||||
Peak isolation (dB) | 42 | 40 | 58 | 55 | |
Isolation @23℃(dB) | ≥28 | ≥26 | ≥48 | ≥45 | |
Typ. Insertion Loss (dB) | 0.40 | 0.50 | 0.50 | 0.60 | |
Insertion Loss (dB) | ≤0.55 | ≤0.65 | ≤0.65 | ≤0.80 | |
Extinction Ratio (dB) | Type B (Both of axis working) | ≥20 | ≥18 | ≥20 | ≥18 |
Type F (Fast axis blocked) | ≥23 | ≥20 | ≥23 | ≥20 | |
Return loss (Input/Output) (dB) | ≥55/55 | ||||
Power handling (mW) | ≤300 | ||||
Fiber Type | 1310nm :PM 1310 Panda Fiber;1550nm:PM1550 Panda Fiber; | ||||
Operating temperature (℃) | -5~+70 | ||||
Storage temperature (℃) | -40 ~ +80 | ||||
Dimensions (mm) | φ5.5×L35 or φ5.5xL38 | ||||
*Above specifications are for devices without the connectors.
*For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower, and ER will be 2dB lower.
*The PM fiber and the connector key are aligned to the slow axis.
*For F type: slow axis working, fast axis is blocked; For type B : both axis is working; For S type:fast axis working, slow axis is blocked.

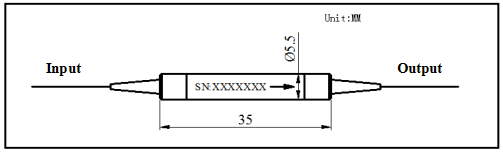

Package Dimensions：
Ordering Information：
PMIS | Wavelength | Type | Grade | Axis Alignment | Package | Pigtail Type | Length | Connector |
PMIS | 1310=1310nm 1450=1450nm 1480=1480nm 1550=1550nm
| S=Single Stage D=Dual Stage
| P=P Grade A=A Grade
| F=Fast Axis Blocked B=Both Axis Working S=Slow Axis Blocked
| 0=Glass tube 1=5.5x35mm 2=5.5x38mm
| 1=250um bare fiber 2=900um loose tube 3=3mm loose tube 4=2mm loose tube
| H=0.5m 8=0.8m 1=1.0m 5=1.5m 2=2.0m 3=3.0m 4=4.0m A=2.5m B=5.0m | 0=None 1=FC/UPC 2=FC/APC 3=LC/UPC 4=LC/APC 5=SC/APC 6=SC/UPC
|
