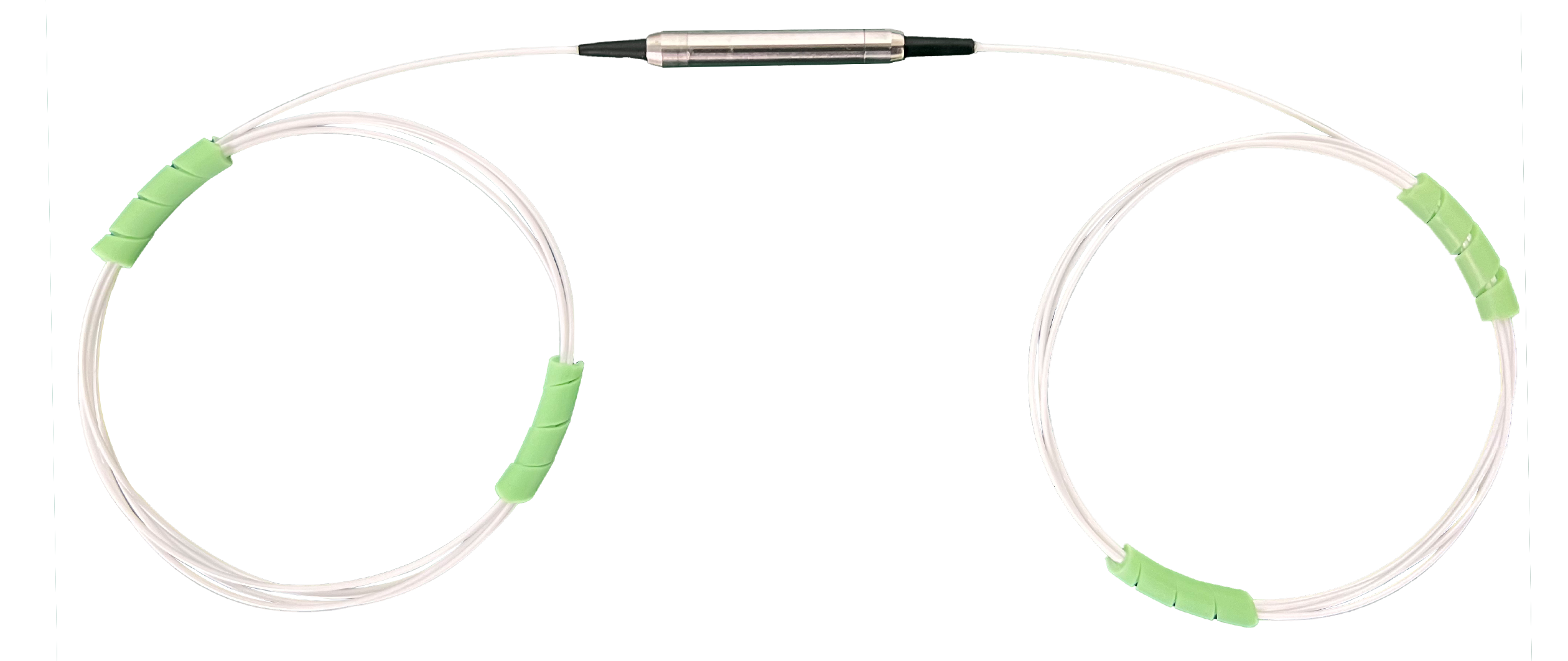

In Line Polarizer
Features |
|
Low Insertion Loss High stability and reliability | |
Application | |
Fiber Optical Instrument Fiber Sensor |
Specifications：
Type Parameter | Value | ||||
Center wavelength (nm) | 1310, 1550 | 1030,1064 | 980 | 850 | 780 |
Bandwidth (nm) | ±50 | ±30 | ±20 | ||
Typ. Insertion Loss at 23℃ (dB) | 0.35 | 0.45 | 0.55 | 0.80 | 0.90 |
Insertion Loss at 23℃ (dB) | ≤0.50 | ≤0.60 | ≤0.70 | ≤1.0 | 1.10 |
Typ. Extinction Ratio 23℃ (dB) | 30 | 28 | |||
Extinction Ratio 23℃ (dB) | ≥28 | ≥25 | |||
Fiber Type | PM1310,PM1550 | PM980 | PM850 | ||
Return loss (dB) | ≥50 | ||||
Power handling （CW）(mW) | ≤300 | ||||
Operating temperature (℃) | -5~+70 | ||||
Storage temperature (℃) | -40 ~ +85 | ||||
Dimensions (mm) | φ5.5×L35 or φ5.5×L38 | ||||
*Above specifications are for devices without the connectors.
*For device with connector, IL is 0.3dB higher, RL is 5dB lower, ER is 2dB lower.
*The default connector key is aligned to slow axis

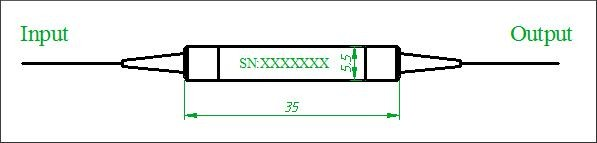

Package Dimensions：
Ordering Information：
ILP | Wavelength | Fiber Type on port1&port2 | Package | Pigtail Type | Length | Connector |
ILP | 0780=780nm 0850=850nm 0980=980nm 1030=1030nm 1064=1064nm 1310=1310nm 1550=1550nm
| 11=PM fiber on port1&port2 12=PM fiber on port1,non PM fiber on port2 21=non PM fiber on port1,PM fiber on port2 22= non PM fiber on port1&port2.
| 0=Glass tube 1=5.5x35mm 2=5.5x38mm
| 1=250um bare fiber 2=900um loose tube 3=3mm loose tube 4=2mm loose tube | H=0.5m 8=0.8m 1=1.0m 5=1.5m 2=2.0m 3=3.0m 4=4.0m A=2.5m B=5.0m | 0=None 1=FC/UPC 2=FC/APC 3=LC/UPC 4=LC/APC 5=SC/APC 6=SC/UPC
|
