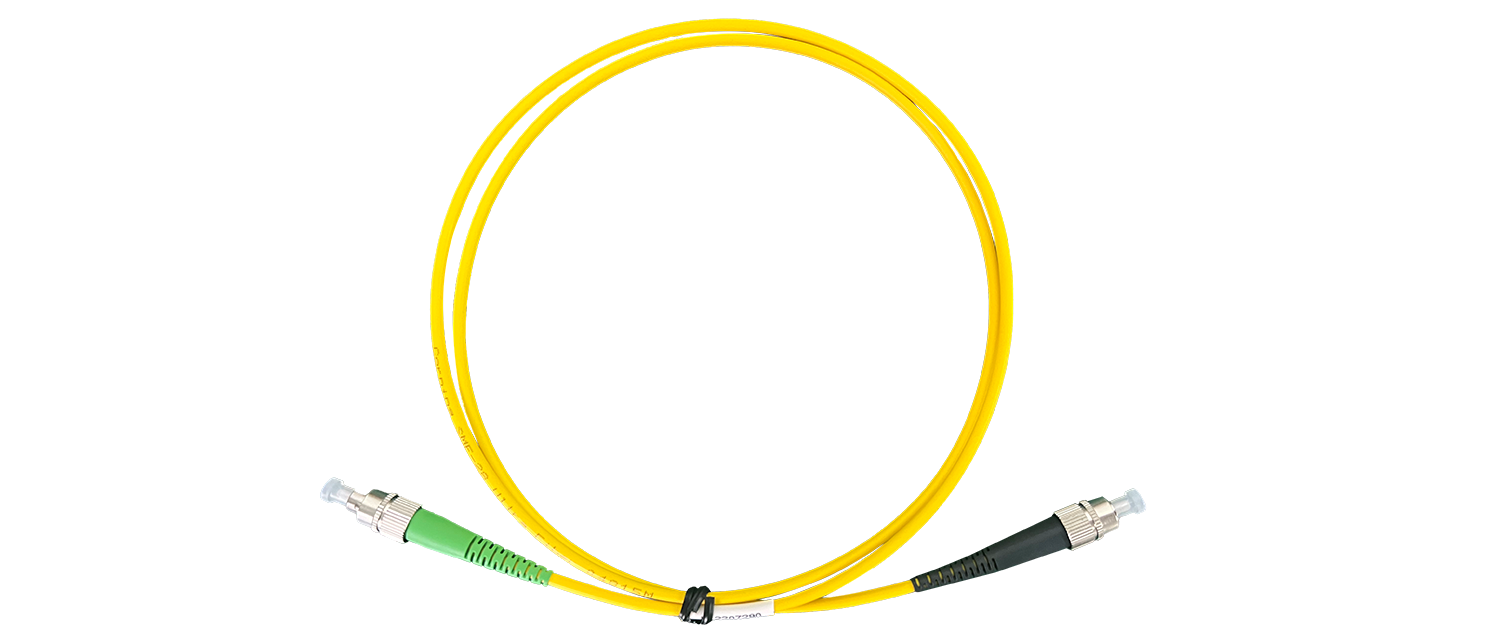

Polarization Maintaining Fiber Patchcord
Features |
|
Low Insertion Loss High Return Loss & ER High Stability and reliability | |
Application | |
Fiber Laser，Fiber Amplifiber |
Specifications：
Parameter | Value | |||
Connector Type | FC,SC, LC,ST, MU | |||
Wavelength (nm) | 1310,1480, 1550 | 980, 1030,1064, | 780,850 | |
Insertion Loss (dB) | ≤0.30 | ≤0.50 | ≤0.80 | |
Return loss (dB) | UPC Type | ≥50 | ||
APC type | ≥60 | |||
Extinction Ratio 23℃ (dB) | ≥23 | ≥22 | ||
Fiber Type | PM1310,PM1550 | PM980 | PM850 | |
Key Orientation | Slow Axis | |||
Axis Alignment (deg) | ±3 | |||
Operating temperature (℃) | -5~+70 | |||
Storage temperature (℃) | -40 ~ +80 | |||

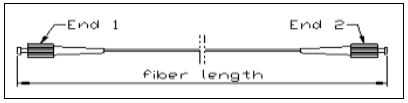

Package Dimensions：
Ordering Information：
PMJP | Wavelength | Fiber Type | Pigtail Type | Length | Connector1 | Connector2 |
PMJP | 0780=780nm 0850=850nm 0980=980nm 1030=1030nm 1064=1064nm
| 1=PM780 2=PM850 3=PM980 4=PM1310 5=PM1550
| 1=250um bare fiber 2=900um loose tube 3=3mm loose tube 4=2mm loose tube
| H=0.5m 8=0.8m 1=1.0m 5=1.5m 2=2.0m 3=3.0m 4=4.0m A=2.5m B=5.0m | 0=None 1=FC/UPC 2=FC/APC 3=LC/UPC 4=LC/APC 5=SC/APC 6=SC/UPC 7=ST/PC 8=MU | 0=None 1=FC/UPC 2=FC/APC 3=LC/UPC 4=LC/APC 5=SC/APC 6=SC/UPC 7=ST/PC 8=MU |
